Ribbon facing following a mesh sample orientation

Technical & Engine Help Unreal Engine Help
1

Hi !
After looking everywhere i could not find the answer.
basically i have my system shooting some mesh “weapon” in a niagara system and it supposed to have a ribbon trail beind until here no problem.

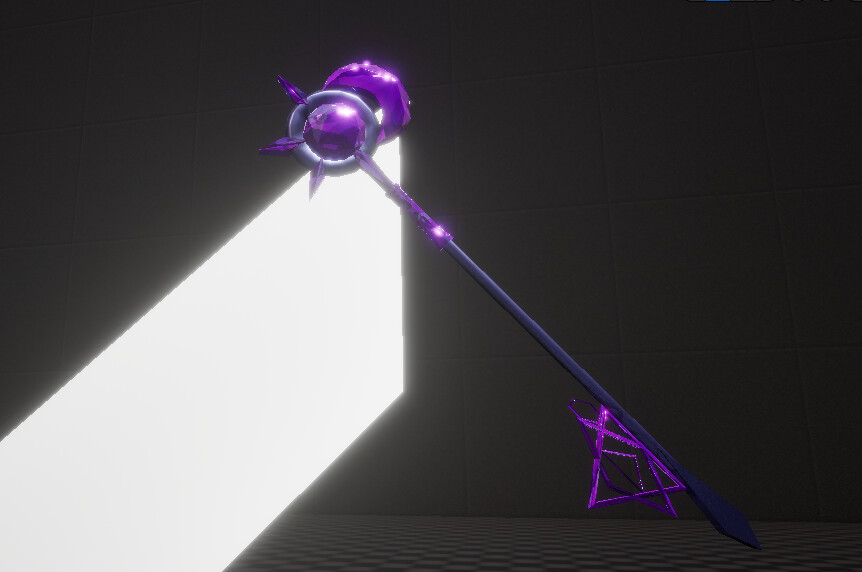

Issue i have is that it looks like this

image862×572 51.1 KB

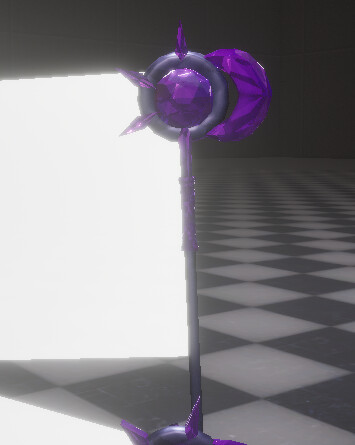

The Ribbon is not following the mesh orientation ( the cut of the ribbon spawn should follow the hilt of the weapon) like this
image355×445 22 KB

But as soon the mesh have a rotation the mesh doesnt stay oriented to the mesh rotation/orientation.

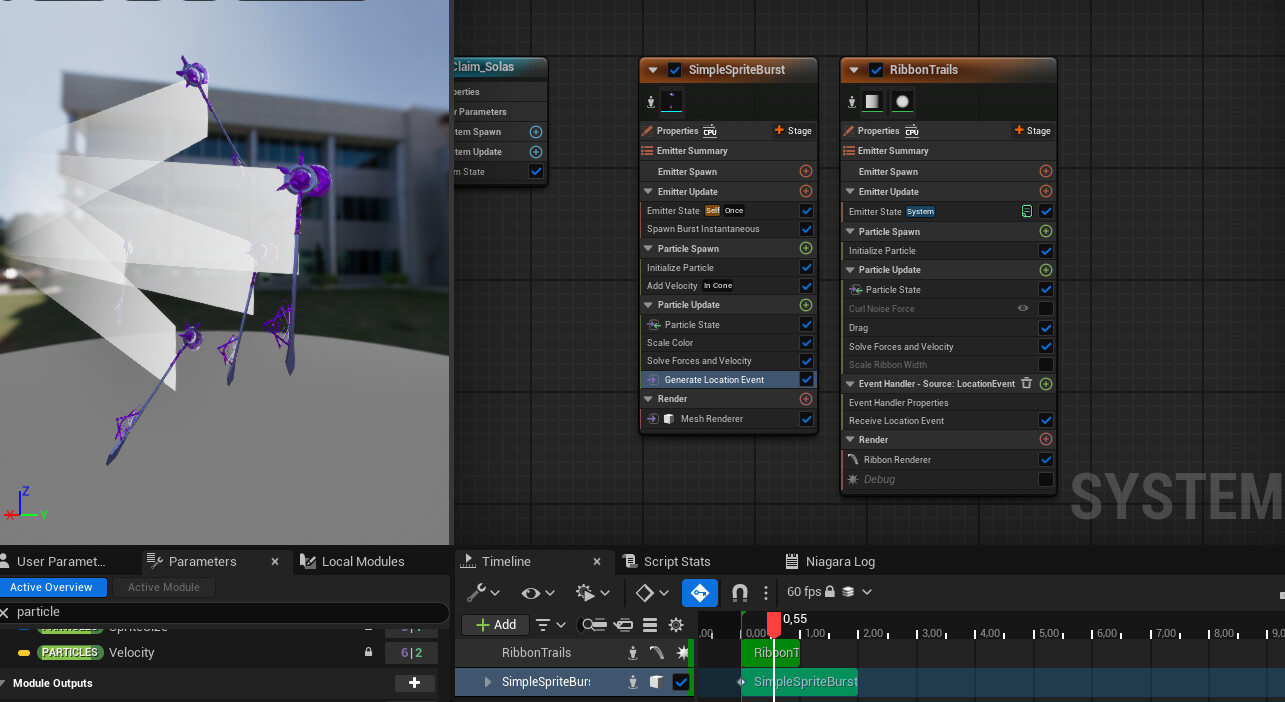

Here is my system:

image1285×702 160 KB

i am truely at loss after trying lots of techniques.

2

Hi

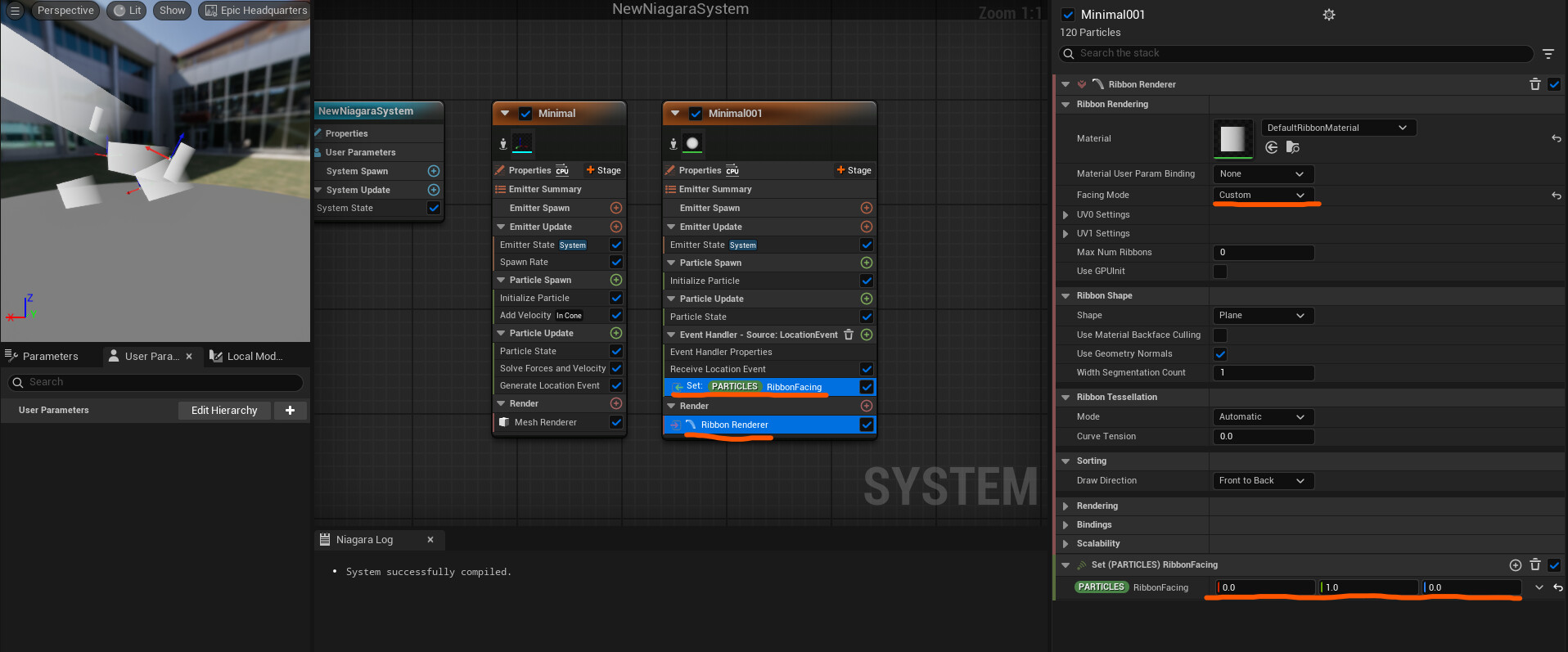

Have you tried setting the ribbon facing to custom and then overriding it to the side vector (0,1,0)? It works like that in the test I’ve made:

imagen
imagen1916×797 221 KB

3

Hey there,
Off the top of my head, I assume this is happening because location event doesn’t automatically account for orientation. You’ll need to find a way to pass the orientation information from the mesh to the ribbon, as it’s probably defaulting to “camera facing” orientation.
