Simon Trümpler - VFX Sketchbook

Personal Work
#321

Opaque Dragon test. It’s difficult doing this because only translucent objects can be masked by stencil. But making the dragon translucent looks sh*tty because of all the surfaces behind each other. So my approach:

  1. The card and the parts of the dragon in front of the card write into a stencil mask
  2. The ground is translucent, does NOT do a depth-test (so it’s rendered in front of everything) BUT is only shown where the stencil mask is NOT

5 Likes
#322

Hah, I’d throw my wallet at Riot if they started making cards like these in Runeterra, this is some next level trickery. Very cool effect.

1 Like
#323

Thanks @Azeros ! :slight_smile:

Small update:

  • added environment into the card
  • added interactivity: pressing 1 brings the card up, pressing 2 sends it to attack pos, pressing 3 triggers dragon attack

Problems:

  • Environment can’t have shadows because you’d see them on the background
  • Card can not cast shadows because it would also be visible on the dragon itself
  • While it’s not a problem having an animation just running, for some reason, when i trigger it per keypress, the stencil mask is laggy and at the dragons mouth you can see edges where the background environment gets visible a bit.
12 Likes
#324

Never cease to amaze us Simon! It’s always a pleasure to find your thread :smiley:

1 Like
#325

@SelicatoArt thank you! <3

Rough outline how the full sequence shall work. I’ll add a lot of impact/trails to the card itself and then the dragon shall spit a stream of fire (to the opposite side of the battlefield).

5 Likes
#326

Small update: first test vfx (the fire stream is a simple crossed plane with a length of 1.0 and a blueprint calculates the distance from mouth to ground and stretches the plane accordingly and at the end is a particle system placed)

card_09

9 Likes
#327

Another small update. Started animating with sequencer.

card_10

There is a thing though, which I find a bit annoying:

UnrealEditor_2023-01-16_20-57-18
UnrealEditor_2023-01-16_20-57-181127×411 83.4 KB

I’ve a material instance (1) which I animate via Sequencer (2) and it works great BUT it auto-generates a new material instance (3) which means, when I now change something in (1), the change is not taken over. I’ve to re-assign my original instance to the mesh first but as soon as I open/play the sequence again, another instance is dynamically generated. I wonder if there is a way to tell it NOT to generate new instances (or to apply changes to the parent instance automatically)?

5 Likes
#328

@simonschreibt
You could maybe try making a MID in BP and assigning that instead of a static Material Instance.
I think they replace it because static instances cannot be animated on runtime

#329

How did you get the texture tiling to be consistent regardless of the mesh scale? Are you changing tiling/UV’s depending on the mesh scale as well?

#330

No, the texture would be stretched a little bit if the mesh is longer. But I think this will not be a bit problem. The stretching should not be too extreme and also I’ll add particles so that the stream isn’t the only visual element.

1 Like
#331

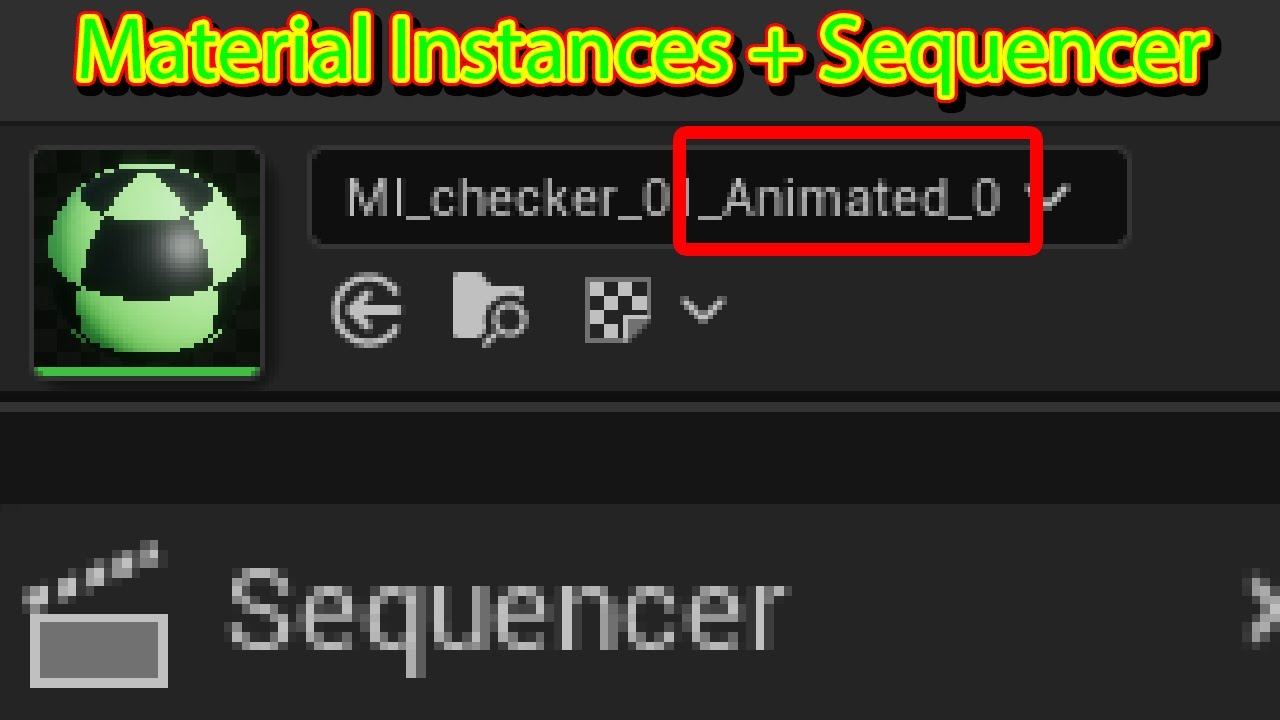

I tried but the problem is, that in Level Blueprint it doesn’t help as I’m not even starting the game when tweaking the material and animating. I’ve tried also re-assigning the material in a blueprint actor but it didn’t work out very well. Here is my summary of the issue:

#332

If you do it on the actor you should be able to make the dynamic instance on construct rather than game start

#333

You mean Blueprint Actor Construction Script? Not sure what you mean :,(

Update

  • better card anim + “bling” effect as soon as it is raised
2 Likes
#334

Yeah, any bp of type actor will have a constructor that is triggered when the object is created, which includes being created by the sequencer.
If you make a dynamic material during that construction and assign it to the relevant material slot, you might be able to avoid it being overridden by some internal sequencer system.

#335

@Niels
I tried that but the sequencer does not (re)create the object. What did work in some cases: clicking the object and moving it a tiny bit after the sequencer was closed. then the construction script was re-executed. It’s also possible to execute the construction script via sequencer but then it’s done every frame which means the sequencer has no control over the material anymore as the object gets the original material instance re-assigned each frame.

small update:

  • glowing border + swoosh is now red
  • twirl swoosh when card flips
  • card has a bit more time (and moves a bit further into the background) before slamming itself into the screen
4 Likes
#336

I can find the document for this mask there and the depth test will cause the translucent out of order

#337

@VFX1234 I’m not exactly sure what you mean but yes, it’s a lot of trying and tweaking. I’ve changed my approach now. The ground plane is now translucent and renders always on top but I can show other translucent geometries by setting them to a higher sort order.

Update

  • Added glass shards
  • Added dragon visibility switch

Preview:
card_13

3 Likes
#338

Update:

  • removed glass shattering (didn’t fit well and too hard to make look good)
  • reworked animation/timing for the complete process

ToDo:

    1. Card Drop
    • Impact
    • Upward (Dragon raises out of card)
    • Fire Stream
    • Fire Impact
    • Downward (Dragon lowers into card - burst sparkles out of interior?)
    1. Card Drop
    • Small Impact Smoke
  • General
    • Idle Vfx for Card Interior (visible after swoosh)
    • Add sparkles to swoosh trails
6 Likes
#339

Omg, I know this post is really old, but I love this blue flame so much :o

1 Like
#340

Update:

  • added sparkles in card (which can escape their stencil prison)
  • bg darkens when card flips, also a big swirly effect in background and card border glows strongly

  • I also added a spline-geo-tool to make the creation of curved “swoosh”-planes easier
    https://i.imgur.com/8tGsrkX.gif

  • created 2 tutorials about death-event of particles

9 Likes
