Ok, I think time is right to post my breakdown. Each week I’ll try to show you how I created each segment of the effect. Let me know if you want me to go into details about some specific part of the effect

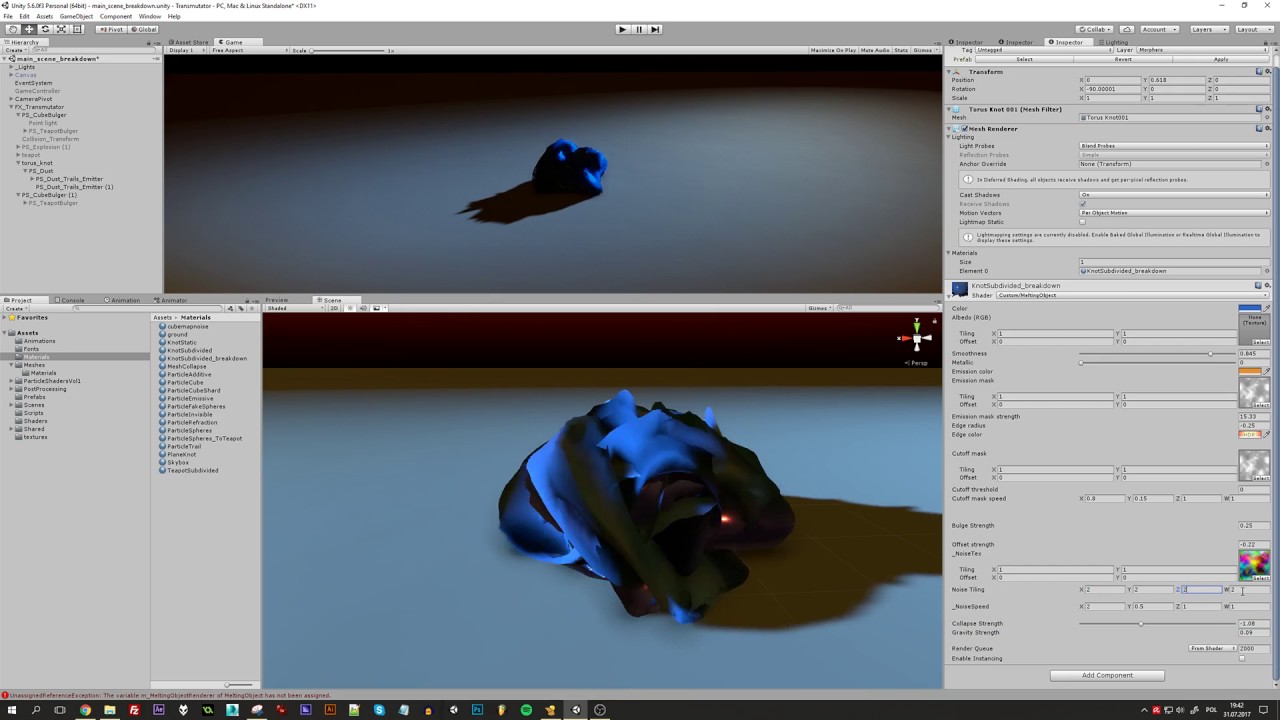

I’ll start with the melting torus knot. I made a shader which I use for both torus and teapot. It works any mesh out there as long as it has proper, tiled UV on which I can apply a noise texture. Here are all my exposed settings seen in the material inspector:
Basically, all these parameters are driven by a particle system. In the material itself I am only setting default values or some multipliers for particle-driven params. I won’t go through every single parameter but I made a short video showing some of them in action.
As you can see i can explode a mesh and apply fake gravity force to it. The shader is squashing a mesh the closer it gets to the ground. This is using a very naive implementation which is assuming that ground is flat. I could improve the shader by using terrain heightmap as ground level etc. But this was not needed for the contest.
Other parts of the shader shown on the video are very simple - texture based dissolve and noise texture sampled in vertex shader.
One thing you probably noticed is that distorted mesh is not very smooth. I tried implementing tessellation but Unity has a bug which prevented me from using tessellation while I was passing data from vertex to fragment program. I would have to re-write the whole shader and implement deferred rendering from grounds up to get it running. Obviously I skipped this step and simply subdivided the mesh in 3ds max.
Now we come to particle-driven data. I am using Size and Color to drive some shader parameters. I also made a custom module with few curves - this is driving mesh cutout, light emission strength multiplier, collapse strength (gravity) and allows me to reference specific mesh I want to modify.

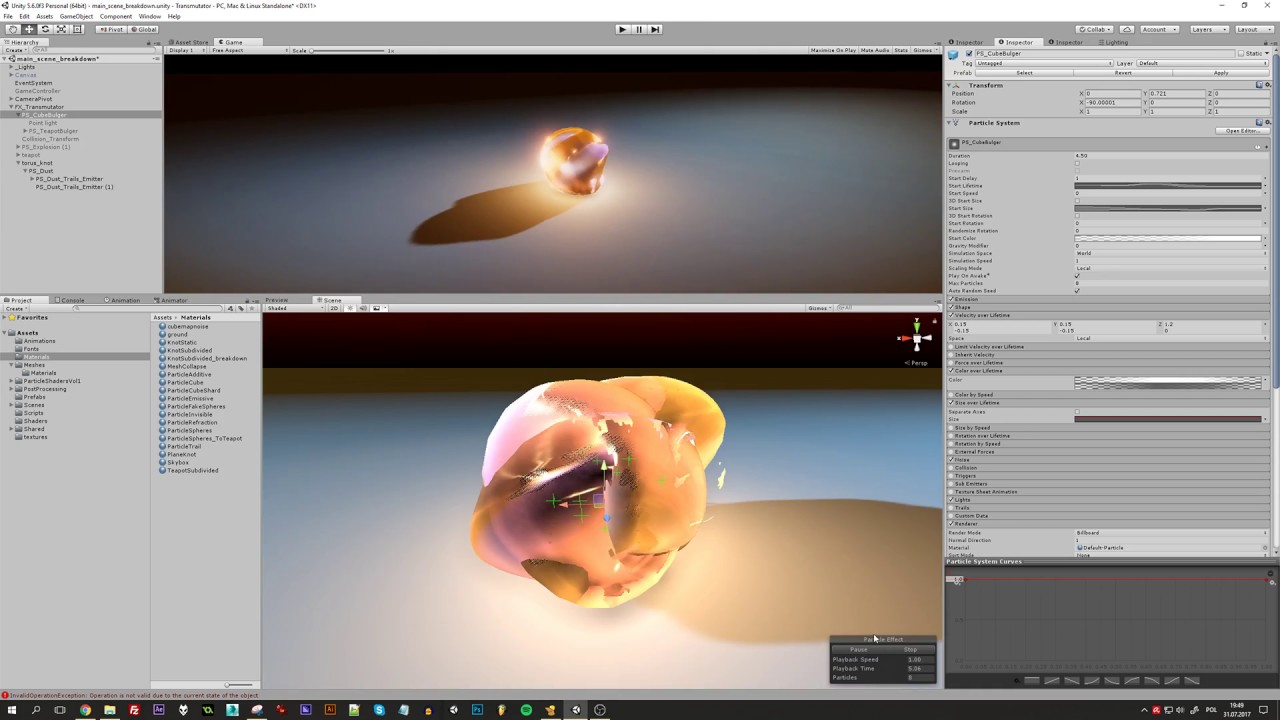

For the final version I disabled particle rendering as they do not do anything except passing data to the shader. But for breakdown purposes I enabled rendering so you could see what’s happening:
Someone asked me how do I use particles to drive the material. Well, this is pretty easy. I am using Unity’s built-in function which allows me to read each particle’s params such as size, speed, position, color, alpha etc. I am simply passing selected param values into torus’ material. Material has a custom shader I mentioned earlier which is using these params to do things. In my case I am passing only two things:
- Size (used to set how big the litup area is)
- Alpha (used to set how strong mesh distortion is)
- And all the custom curves which are sampled during Emitter’s Lifetime (cutoff, gravity, emission multiplier)
For the contest I used fixed amount of particles which is 8. This is because I use a shader function with a loop in it. Shaders are pretty bad at doing loops and making a loop with dynamic amount of cycles is more expensive and only works on newer hardware. I wanted the demo to work on all judges’ PCs so I decided to limit amount of particles which can drive the shader. This can be easily extended to any amount.
As you can see, the effect looks pretty bad without any postprocessing but HDR colors are making all the difference in the world and glow helps with binding all the elements together. I also used SSAO and motion blur to make the effect look more fluid and smooth.
That’s it for now! Next week I’ll focus on these small blobs which do all sorts of different things.
15 Likes
Thanks so much for this breakdown, and congratulations! This is brilliant work! You don’t by any chance know if there is a similar way to pass particle parameter values to a shader using UE4, do you?
Back in 4.11 days there was no way to do that via blueprint but I remember that they had some very hidden particle classes you could use in C++. Probably a lot have changed since then so your best bet is to either dig the c++ documentation or just look for particle functions/classes and see what autocompletion reveals.
Sounds good. Congrats again!
Congrats! Your contest work was really inspiring for me, I also asked about particles and using them to drive material. And, thx to breakdown, now I figured out how to make something similar. Here is a little gif
PS: I’m also very interested in how you made those liquid bubbles. They look very realistic.
10 Likes
That’s a cool looking test! Reminds me of Andrew Kramer’s Element 3d commercial.
I’ll cover creation of these bubbles next week so stay tuned
